Pioneer of geared motor / geared pump
TSUKASA ELECTRIC CO.,LTD

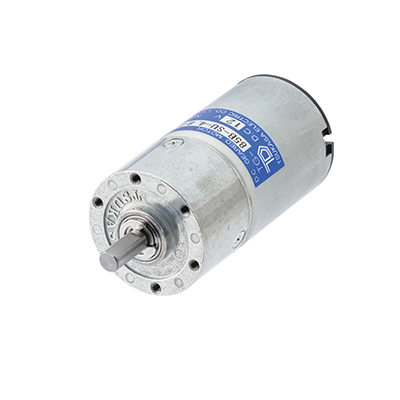

TG-05D-SS-40-KA,6V
Features
(1.2 ~ 3.5W) ?35.8 3-slot DC brushed motor
Main Uses
Laser printer / Copy machine / Finisher / Stamper / Ticket machine / Stacker / Bill counter / Strap machine / Coin dispenser / Vending machine / Fare collection machine / ATM / Gaming machine / CCTV / X-ray device / Sewing machine / Valvle / Printer / Dispensing machine
- Motor size (φ diameter)φ35.8
- Gear sizeφ37
- motor05D
- GearSS
- Reduction ratio40
- Rated voltage (V) 6V
- No-load rotation speed (rpm159.3
- No-load current (mA)148
- Rated torque (mN ・ m)98
- Rated torque (kgf ・ cm)1
- Rated rotation speed (r / min)133.4
- Rated current (mA)590
- Direction of rotationCCW
- Mass (g)199
- easures against electrical noiseELECTROLYTIC CAPACITOR

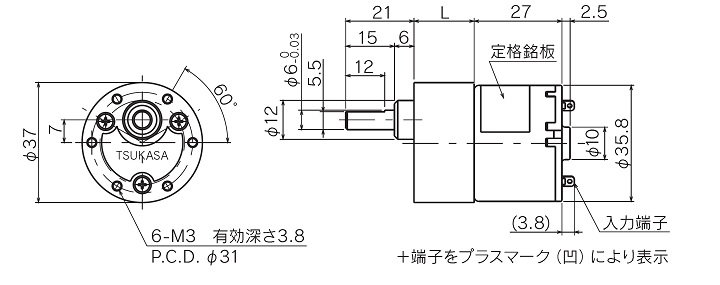

Outline drawing

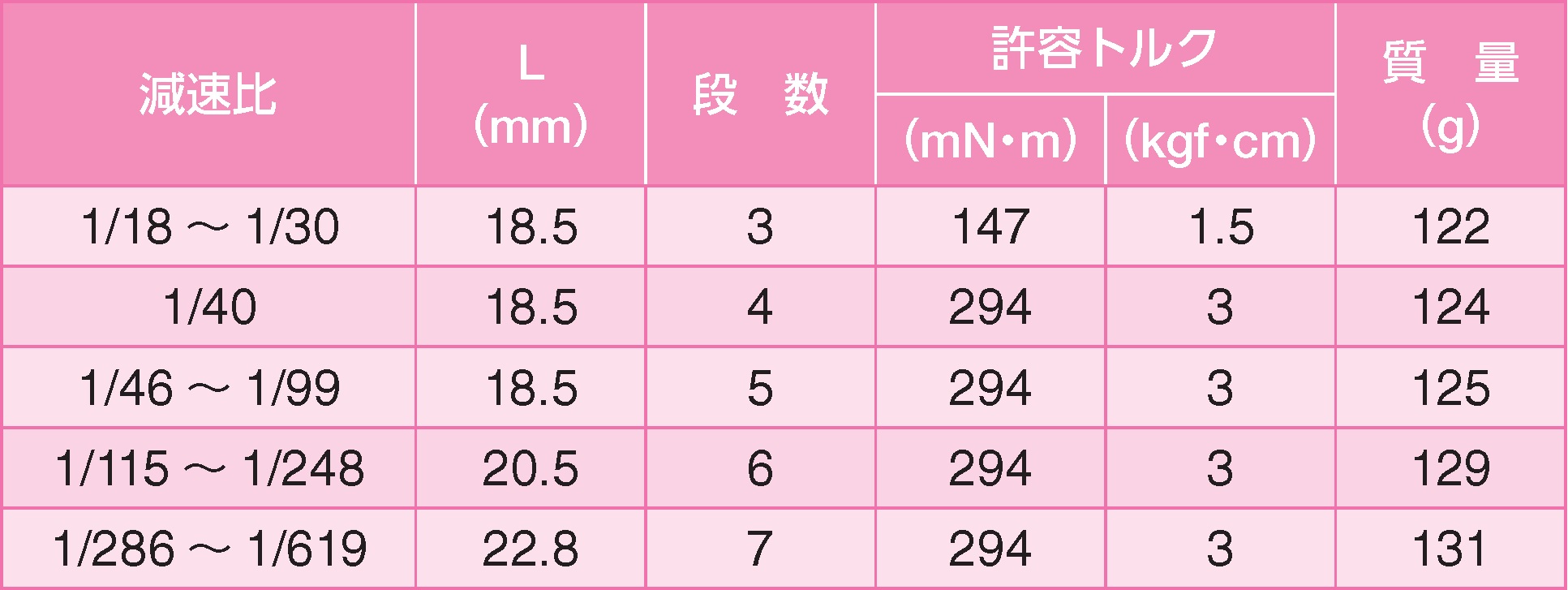

Gear head specifications
